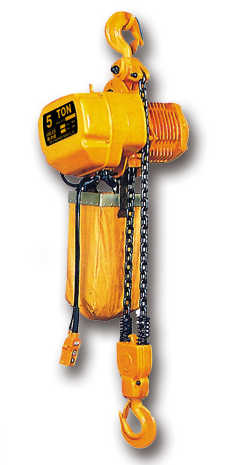

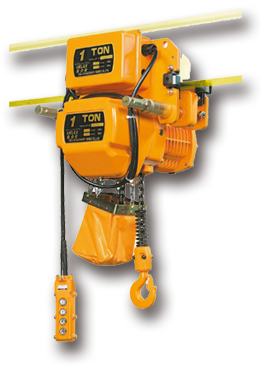

SK Series (3PH)
SK Series (3PH)

 Capacity
 0.5 Ton – 30 Ton
 Power Supply
 380 Volt (3 Phase)
 Control Voltage
 48 Volt
 Control Speed
  • Single Speed (Up to 20 Ton)
  • Double Speed (Up to 30 Ton)
 Standard Lift
 3 M
 Key Features
  • Overload (Slip Clutch)
  • Upper Limit Switch
  • Lower Limit Switch
  • Mechanical Brake System
  • Negative Phase Detector
Load Supporting Frame
  • Constructed with two plates of S50C steel (2 Tons 1 Fall type & higher capacity)
  • Chain wheel case, gear case B and load-supporting frame are constructed with one piece of FCD45 nodular cast-iron. (3 Tons 3 Falls type and lower capacity)
Mechanical Brake
Long-service, trouble-free mechanical brake, together with motor brake, provides dual braking system to assure operating safety.

Housing
The aluminum alloy motor housing is light in weight and provides good heat dissipation, allowing up to 30 minutes continues duty. Fully-enclosed design, suitable for applications in foundries, electro-plating factories…etc...

Negative Phase Detector
Motor will not run if power supply is wrongly wired.

48V Controller Voltage
48V controller can prevent personal from injury caused by current leakage of push button control unit.

Limit Switch
Limit switch can avoid overwinding of chains and protect gear device form damage.

Load Chain
Japanese-made FEC 80 supper alloy steel, hear-treated chain is suitable for applications in harsh operating environments.

Hook
  • Hot-forged, excellent strength and toughness.
  • Bottom hook swivels through 360 degree.
  • Safety catches on top and bottom hooks.

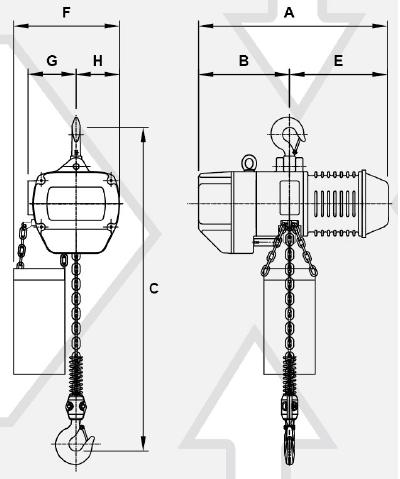

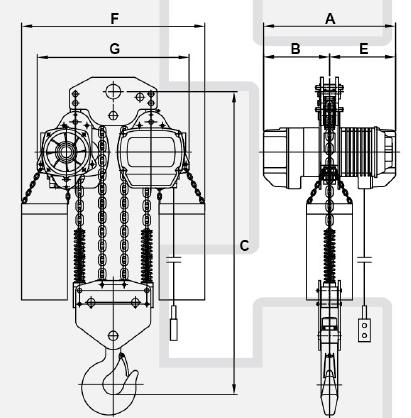

DIMENSION (mm)
Nominal
Capacity
(Ton)		 Model Min. Distance
Between Hooks:  C		 A B E F G H
Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed
0.5 USK0050L (D) 588 588 551 549 253 253 299 297 303 140 123
USK0050H (D)
1 USK0100L (D)
USK0100H (D) 570 318
2 USK0200L (D) 745 745 549 297 319 202 77
USK0200H (D) 570 318
3 USK0300L (D) 849 849 549 297 400 239 121
USK0300H (D) 570 318
2 USK0200S (D) 777 777 649 673 345 345 304 328 426 184 162
2.5 USK0250S (D) 823 823
3 USK0300S (D) 944 944 260 86
5 USK0500S (D) 966 966 271 75
7.5 USK0750S (D) 972 972 547 292 175
10 USK1000S (D) 1238 1238 690 690 345 345 890 730 -
15 USK1500S (D) 1392 1392 1048 888 -
20 USK2000S (D) 1534 1534 1248 1088 -
30 USK3000S (D) 1776 1776 760 800 380 400 380 400 1902 1148 -

SPECIFICATIONS
Nominal
Capacity
(Ton)		 Model Standard
Lift(m)		 Lifting Speed(m/min)
3 phase		 Lifting Motor (KW) Power
Supply		 Duty
Rating%		 Load Chain
Dia.(mm)x
Chain Falls		 Single Speed Dual Speed
Single
Speed		 Dual
Speed		 50HZ 60HZ N.W.kg G.W.kg N.W.kg G.W.kg
Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed
0.5 US0050LK US0050LDK 3 6.7 6.7/2.2 8.0 8.0/2.6 1.5 1.5/0.5 (3PHASE)
200V-600V
50HZ/60HZ		 40 Ø 7.1x1 58 64 63.5 69.5
US0050HK US0050HDK 11.3 11.3/3.8 13.5 13.5/4.5 1.7 2.2/0.7 60 66 63.5 69.5
1 US0100LK US0100LDK 5.3 5.3/1.8 6.4 6.4/2.1 1.5 1.5/0.5 58 64 63.5 69.5
US0100HK US0100HDK 6.7 6.7/2.2 8.0 8.0/2.6 1.7 2.2/0.7 60 66 63.5 69.5
2 US0200LK US0200LDK 2.6 2.6/0.9 3.2 3.2/1.1 1.5 1.5/0.5 Ø 7.1x2 70.5 76.5 75 81
US0200HK US0200HDK 3.3 3.3/1.1 4.0 4.0/1.3 1.7 2.2/0.7 70.5 76.5 75 81
3 US0300LK US0300LDK 1.8 1.8/0.6 2.1 2.1/0.7 1.7 2.2/0.7 Ø 7.1x3 84.5 97.5 87.5 100.5
US0300HK US0300HDK 2.2 2.2/0.7 2.6 2.6/0.9 1.7 2.2/0.7 84.5 97.5 87.5 100.5
2 US0200SK US0200SDK 6.6 6.6/2.2 7.9 7.9/2.6 3.7 3.7/1.2 Ø 10.0x1 116.5 144.5 118 146
2.5 US0250SK US0250SDK 5.3 5.3/1.8 6.4 6.4/2.1 Ø 11.2x1 116 144 125 153
3 US0300SK US0300SDK 4.3 4.3/1.4 5.2 5.2/1.7 Ø 10.0x2 134 162 136 164
5 US0500SK US0500SDK 2.6 2.6/0.9 3.2 3.2/1.0 Ø 11.2x2 145 173 154 182
7.5 US0750SK US0750SDK 1.8 1.8/0.6 2.1 2.1/0.7 Ø 11.2x3 194 223 204 232
10 US1000SK US1000SDK 2.6 2.6/0.9 3.2 3.2/1.0 3.7x2 3.7x2/
1.2x2		 Ø 11.2x4 334 392 351 407
15 US1500SK US1500SDK 1.8 1.8/0.6 2.1 2.1/0.7 Ø 11.2x6 400 468 417 485
20 US2000SK US2000SDK 1.3 1.3/0.4 1.6 1.6/0.5 Ø 11.2x8 510 590 527 577
