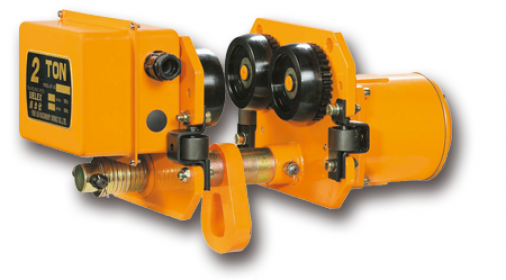

Electric Trolley
Electric Trolley
Machined-Steel Wheels and Gears
The frame are constructed with one piece of FCD45 nodular cast-iron.

Single or Multiple Motor Speed
The motor speed is selection standard of single speed and double speed or multiple speed.

Side-Guide Roller System
Designed for very smooth travel along the beam, the motorized trolley uses a side-guide roller system that keeps the load controlled and on track while travelling.

Control Voltage
48V controller can prevent personnel from injury caused by current leakage of push button control unit.

Motor Brake
Installed with durable lifetime rotor brake with the hardened cover.

SPECIFICATIONS & DIMENSIONS
Nominal
Capacity
(Ton)		 Model Travelling Speed (m/min)
 3 phase		 Travelling Motor (KW) Flange Width (mm) Minimum Radius For Curve (mm) Dimensions
(mm)
50HZ 60HZ
Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed
4P 6P 2/6P 4P 6P 2/6P 4P 6P 2/6P F A B C D E G
1 USM0100L - 12.5 - - 15,12,8 - - 0.3 - 75-175 800 300 218 73 118 290 30
USM0100H 18.75 - - 22.5 - - 0.4 - - 94
USM0100D - - 20/6.6 - - 24/8 - - 0.4/0.13 118
2 USM0200L - 12.5 - - 15,12,8 - - 0.3 - 1000 302 221 64 118 294 38
USM0200H 18.75 - - 22.5 - - 0.4 - - 106
USM0200D - - 20/6.6 - - 24/8 - - 0.4/0.13 118
3 USM0300L - 12.5 - - 15,12,8 - - 0.3 - 125-200 1000 325 221 76 118 294 45
USM0300H 18.75 - - 22.5 - - 0.4 - - 125
USM0300D - - 20/6.6 - - 24/8 - - 0.4/0.13 118
5 USM0500L - 12.5 - - 15,12,8 - - 0.6 - 150-200 1500 400 228 94 139 301 55
USM0500H 18.75 - - 22.5 - - 0.75 - -
USM0500D - - 20/6.6 - - 24/8 - - 0.75/0.25
7.5 USM0750L - 12.5 - - 15,12,8 - - 0.6 - 150-300 2000 445 231 105 169 304 70
USM0750H 18.75 - - 22.5 - - 0.75 - -
USM0750D - - 20/6.6 - - 24/8 - - 0.75/0.25
10 USM01000L - 12.5 - - 15,12,8 - - 0.6 - 510 237 104 200 311 70
USM01000H 18.75 - - 22.5 - - 0.75 - -
USM01000D - - 20/6.6 - - 24/8 - - 0.75/0.25
Single Phase
1 USM0100E - 10 - - 12 - - - - 75-175 - 300 218 73 118 290 30
2 USM0200B - 10 - - 12 - - - - - 302 221 64 118 294 38
