Chain
Japanese-made FEC 80 super alloy steel, heat-treated chain is suitable for applications in harsh operating environments.

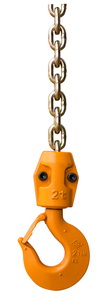

Hook
  • Hot-forged, excellent strength and toughness.
  • Bottom hook swivels through 360 degrees.
  • Safety catches on top and bottom hooks.

Chain
DIMENSION (mm)
Hoist Capacity (Ton) Series d
Trade
Size(mm)		 a
Inside
Width(mm)		 b
Outside
Width(mm)		 p
Inside
Length(mm)		 Weight Per Meter (kg/m) Working Load Limit (kgf) Proof Load
(kgf)		 Breaking Load
(kgf)
Single
Speed		 Dual
Speed
0.5 L/K LD/KD 7.1 8.9 23.6 21.0 1.1 1600 3150 6300
H/K HD/KD
1 NL/K -
NH/K -
L/K LD/KD
H/K HD/KD
E/K -
2 NL/K -
NH/K -
L/K LD/KD
H/K HD/KD
E/K -
3 NL/K -
NH/K -
L/K LD/KD
H/K HD/KD
2 S/K SD/KD 10 12.5 33.2 30 2.18 3150 6300 12500
3
2.5 11.2 14 37.2 34 2.73 4000 8000 16000
5
7.5
10

Hook
DIMENSION (mm)
CAPACITY (Ton) T/B a b c d e g
0.5,1 T&B 33 23 29 23 40 29
2 T&B 45 31 41 31 46 37
3 T&B 55 34 48 34 52 40
5 T&B 67 45 60 45 62 46
7.5 T&B 85 60 78 60 80 55
10 T&B 100 70 95 65 100 64
15 T&B 120 87 110 85 120 82
20 T&B 140 100 130 95 140 105
                                                                             T…TOP HOOK        B…BOTTOM HOOK
