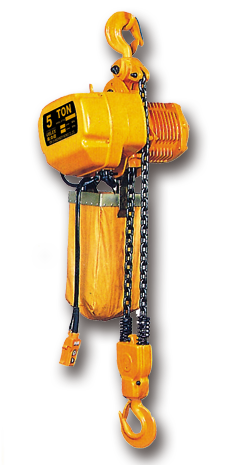

S/E Series (3PH/1PH)
S/E Series (3PH/1PH)

 Capacity
 0.5 Ton – 30 Ton
 Power Supply
  • 380 Volt (3 Phase)
  • 220 Volt (1 Phase)
 Control Voltage
 48 Volt
 Control Speed
  • 1PH Single Speed (1 – 2 Ton)
  • 3PH Single Speed (Up to 20 Ton)
  • 3PH Double Speed (Up to 30 Ton)
 Standard Lift
 3 M
 Key Features
  • Upper Limit Switch
  • Lower Limit Switch
  • Mechanical Brake System
  • Negative Phase Detector
Load Supporting Frame
  • Constructed with plates of S50C steel (2 Tons 1 Fall type & higher capacity)
  • Chain wheel case, gear case B and load-supporting frame are constructed with one piece of FCD45 nodular cast-iron. (3 Tons 3 Falls type and lower capacity)
Mechanical Brake
Long-service, trouble-free mechanical brake, together with motor brake, provides dual braking system to assure operating safety.

Housing
The aluminum alloy motor housing is light in weight and provides good heat dissipation, allowing up to 30 minutes continues duty. Fully-enclosed design, suitable for applications in foundries, electro-plating factories…etc…

Negative Phase Detector
Motor will not run if power supply is wrongly wired.

48V Controller Voltage
48V controller can prevent personnel from injury caused by current leakage of push button control unit.

Limit Switch
Limit switch can avoid overwinding of chains and protect gear device form damage.

Load Chain
Japanese-made FEC 80 super alloy steel, heat-treated chain is suitable for applications in harsh operating environments.

Hook
  • Hot-forged, excellent strength and toughness.
  • Bottom hook swivels through 360 degree.
  • Safety catches on top and bottom hooks.

DIMENSION (mm)
Nominal
Capacity
(Ton)		 Model Min. Distance Between Hooks: C A B E F G H
Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed
0.5 USS0050L (D) 588 588 535 533 236 236 299 397 303 140 123
USS0050H (D)
1 USS0100L (D)
USS0100H (D) 554 318
USS0100E (D) - - - -
2 USS0200L (D) 745 745 533 236 297 319 202 77
USS0200H (D) 554 318
USS0200E - - - -
3 USS0300L (D) 849 849 533 236 297 400 239 121
USS0300H (D) 554 318
2 USS0200S (D) 777 777 635 649 321 321 304 328 426 184 162
2.5 USS0250S (D) 823 823
3 USS0300S (D) 944 944 260 86
5 USS0500S (D) 966 966 271 75
7.5 USS0750S (D) 972 972 547 292 175
10 USS1000S (D) 1238 1238 642 656 328 321 890 730 -
15 USS1500S (D) 1392 1392 1048 888 -
20 USS2000S (D) 1534 1534 1248 1088 -
30 USS3000S (D) 1776 1776 760 800 380 400 380 400 1902 1148 -

SPECIFICATIONS
Nominal
Capacity
(Ton)		 Model Standard
Lift(m)		 Lifting Speed(m/min)
3 phase		 Lifting Motor (KW) Power
Supply		 Duty
Rating%		 Load Chain
Dia.(mm)x
Chain Falls		 Single Speed Dual Speed
Single
Speed		 Dual
Speed		 50HZ 60HZ N.W.kg G.W.kg N.W.kg G.W.kg
Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed		 Single
Speed		 Dual
Speed
0.5 US0050L US0050LD 3 6.7 6.7/2.2 8.0 8.0/2.6 1.5 1.5/0.5 (3PHASE)
200V-600V
50HZ/60HZ		 40 Ø 7.1x1 58 64 63.5 69.5
US0050H US0050HD 11.3 11.3/3.8 13.5 13.5/4.5 1.7 2.2/0.7 60 66 63.5 69.5
1 US0100L US0100LD 4.7 4.7/1.6 5.6 5.6/1.8 1.5 1.5/0.5 58 64 63.5 69.5
US0100H US0100HD 6.7 6.7/2.2 8.0 8.0/2.6 1.7 2.2/0.7 60 66 63.5 69.5
2 US0200L US0200LD 2.3 2.3/0.8 2.8 2.8/0.9 1.5 1.5/0.5 Ø 7.1x2 70.5 76.5 75 81
US0200H US0200HD 3.3 3.3/1.1 4.0 4.0/1.3 1.7 2.2/0.7 70.5 76.5 75 81
3 US0300L US0300LD 1.5 1.5/0.5 1.8 1.8/0.6 1.7 2.2/0.7 Ø 7.1x3 84.5 97.5 87.5 100.5
US0300H US0300HD 2.2 2.2/0.7 2.6 2.6/0.9 1.7 2.2/0.7 84.5 97.5 87.5 100.5
2 US0200S US0200SD 6.6 6.6/2.2 7.9 7.9/2.6 3.7 3.7/1.2 Ø 10.0x1 116.5 144.5 118 146
2.5 US0250S US0250SD 5.3 5.3/1.8 6.4 6.4/2.1 Ø 11.2x1 116 144 125 153
3 US0300S US0300SD 4.3 4.3/1.4 5.2 5.2/1.7 Ø 10.0x2 134 162 136 164
5 US0500S US0500SD 2.6 2.6/0.9 3.2 3.2/1.0 Ø 11.2x2 145 173 154 182
7.5 US0750S US0750SD 1.8 1.8/0.6 2.1 2.1/0.7 Ø 11.2x3 195 223 204 232
10 US1000S US1000SD 2.6 2.6/0.9 3.2 3.2/1.0 3.7x2 3.7x2/
1.2x2		 Ø 11.2x4 334 392 351 407
15 US1500S US1500SD 1.8 1.8/0.6 2.1 2.1/0.7 Ø 11.2x6 400 468 417 485
20 US2000S US2000SD 1.3 1.3/0.4 1.6 1.6/0.5 Ø 11.2x8 510 590 527 577
Single-phase
1 US0100E -   4.7 - 5.6 - 1.5 - SINGLE PHASE
200V 230V
50HZ/60HZ		 15 Ø 7.1x1 63 69 - -
2 US0200E - 2.3 - 2.8 - Ø 7.1x2 74 81 - -
